pressure hull + dive equipment

for Revell's VIIc Uboat

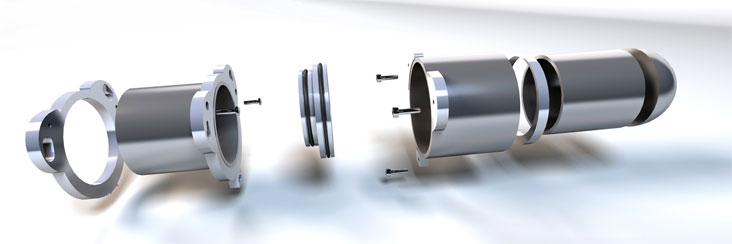

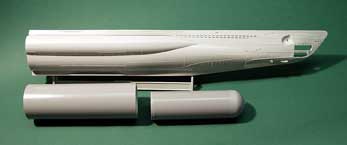

The parts for the pressure hull are NC-milled from 1/4" Polystyrene sheet + pipes from ABS

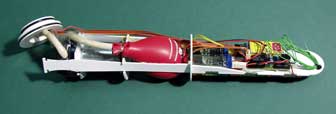

The hull is cut vertical and a reliable, close fitting pressure hull is installed

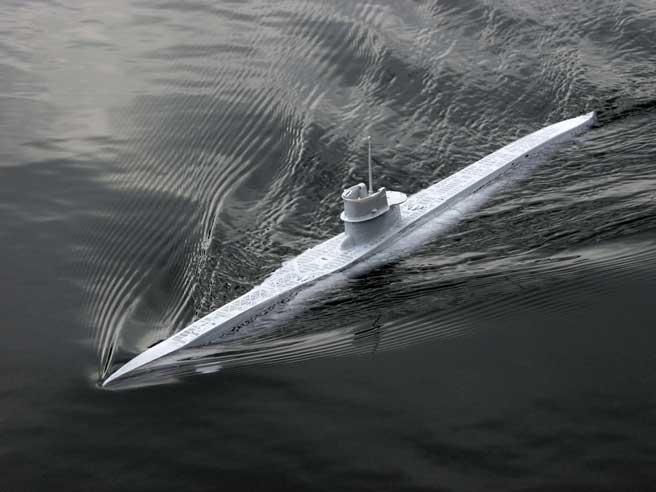

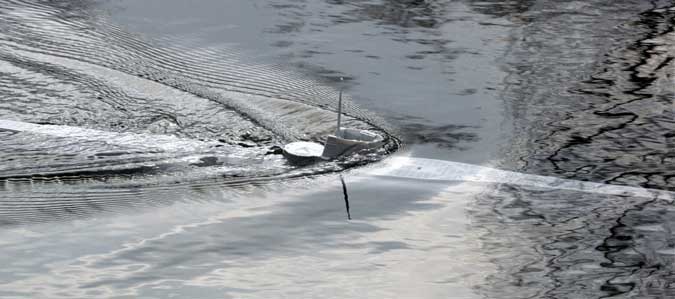

Video of the first test runs
1min, 240x160px, 950kB
Quicktime

or 320x240 2,1MB Quicktime

or 320x240 2,4MB MPEG4

Revell has stopped the Type VIIc in 1:72 scale again.
Therefore we don't have the conversion kit on stock regularly.
A new batch is planed for this april and can be ordered.

kit:

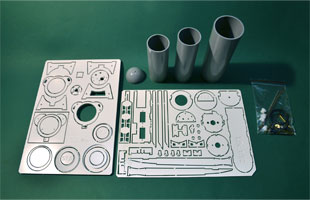

  • conversion kit consisting of pressure hull, interior frame, motor unit (shaft seal, gear wheels, bushings, spacers), pushrod seals 120,-€
suitable equipment:
  • motor 385/6000upm/12V 8,99 €
  • peristaltic pump 220ml/min 64,- €
  • ESC "Robustregler 2A" (1 each for motor and pump)each 24,-€
  • reveiver RP8D1 40MHz (PPM receiver with extreme long range, 8 chanels, synthesizer = no crystal, very interference resistant double conversion, DSP signal recognition) 29,- €

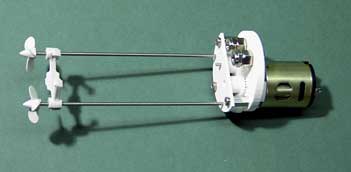

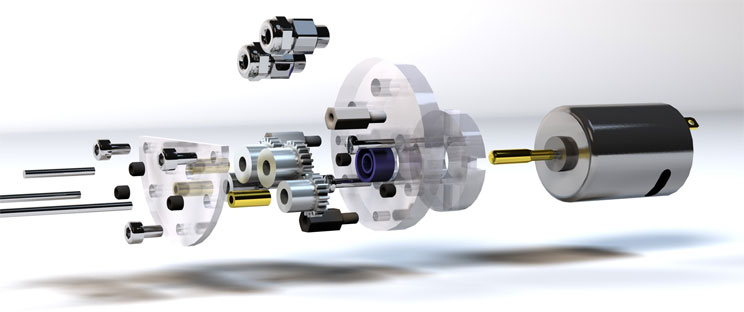

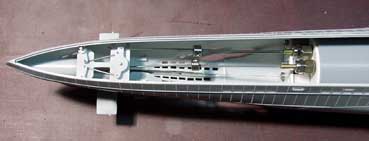

The motor unit uses a slow turning 400 size motor and a special gear. The unit was designed to fit optimaly into the narrow space of the VIIc stern.

The stern has enough free flood room to access the ruder pushrods. The stern part of the pressure hull is removable for maintenance.
instructions(engl).PDF (0.9MB)

Modell-Uboot-Spezialitaeten
all prices in € including VAT
Export prices are 19% less
